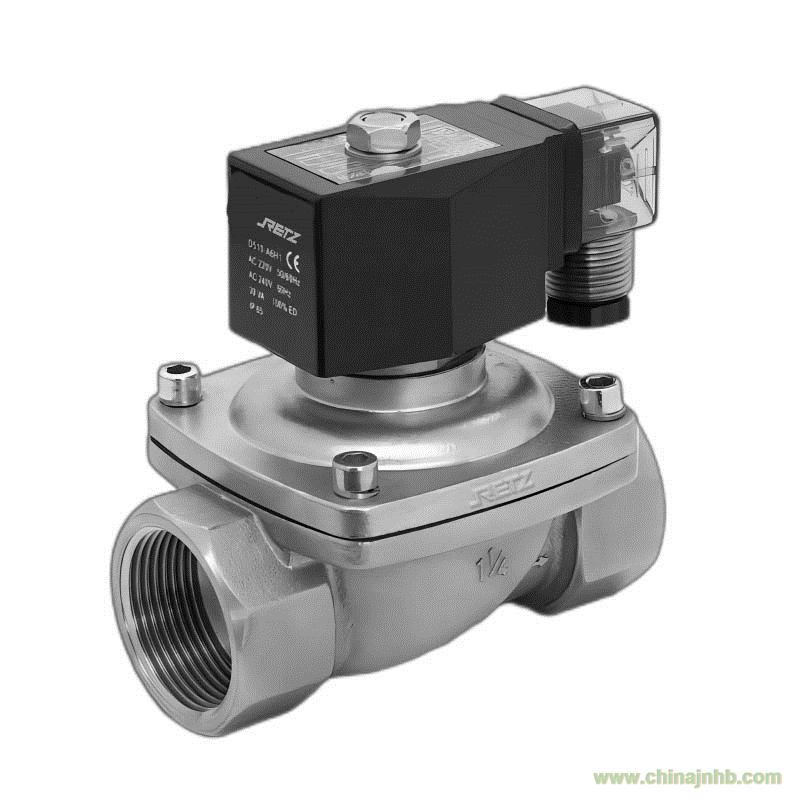

品牌：RETZ瑞茨/我們一直致力于流體控制領域的持續創新，始于2005……進口真空電磁閥通常用于真空設備管路作通斷,本產品廣泛應用在工業爐窯、干燥設備、制藥機械、真空設備、制藥、水廠虹吸管路、航天、石油化工、電力裝備、鋼鐵、電鍍涂裝、燃氣燃油、環保設備、釀酒、吹灰除塵、紡織印染、暖通空調、食品、水處理、等控制系統等工作壓力為負壓的管道系統中Retz
vacuum solenoid valve is usually used for on-off of vacuum equipment pipelines.
This product is widely used in industrial furnaces, drying equipment,
pharmaceutical machinery, vacuum equipment, pharmaceutical, water plant siphon
pipelines, aerospace, petrochemical, power equipment, steel, electroplating and
coating, gas fuel, environmental protection equipment, brewing, dust removal,
textile printing and dyeing, HVAC, food, water treatment, and other control
systems with negative working pressure in pipeline systems
進口真空電磁閥工作原理--Working
principle of imported vacuum solenoid valve
常閉式：當線圈通電時，先導閥芯吸合，先導孔打開，閥上腔卸壓，活塞靠下腔介質壓力推動，電磁閥打開；當線圈斷電時，先導閥芯靠彈簧復位，先導孔關閉，閥上腔由活塞節流孔增壓和復位彈簧的推力，電磁閥關閉。
Normally
closed: When the coil is energized, the pilot valve core is closed, the pilot
hole is opened, the upper chamber of the valve is depressurized, the piston is
pushed by the medium pressure in the lower chamber, and the solenoid valve is
opened; When the coil is powered off, the pilot valve core is reset by the
spring, the pilot hole is closed, and the valve upper chamber is pressurized by
the piston orifice and the thrust of the reset spring, and the solenoid valve
is closed.
常開式：當線圈通電時，先導閥芯靠彈簧復位，先導孔關閉，閥上腔由活塞節流孔增壓和復位彈簧的推力，電磁閥關閉；當線圈斷電時，先導閥芯靠彈簧復位，先導孔打開，閥上腔卸壓，活塞靠下腔介質壓力推動，電磁閥打開。
Normally
open type: When the coil is energized, the pilot valve core is reset by the
spring, the pilot hole is closed, and the valve upper chamber is pressurized by
the piston throttle hole and the thrust of the reset spring, and the solenoid
valve is closed; When the coil is powered off, the pilot valve core is reset by
the spring, the pilot hole is opened, the upper chamber of the valve is
depressurized, the piston is pushed by the medium pressure in the lower
chamber, and the solenoid valve opens.
進口真空電磁閥結構特點--
動作響應迅速；
獨特設計、外觀精美；
密封性好、開關迅速；
專制線圈、不易燒毀；
進口真空電磁閥選型參數--
產品規格：3/8-4"
閥體材質：不銹鋼。
防護性能：防水、防爆（DⅡCT5、ExdⅡCT5、ExmbⅡCT4、ExdⅡCT4）、防腐。
防護等級：IP67、IP65
介質溫度：-40~+450℃。
環境溫度：－20～＋50℃
閥芯材質: 均為不銹鋼
接線方式：接線座式、引線式、插頭式
控制方式：常開、常閉
電源電壓：DC12~127V；AC36~380V
連接方式：內螺紋、法蘭
適用介質：粘度：≤21m㎡/s，（大于21時需定制）氣、水、油、蒸汽、燃氣、腐蝕性氣態或液態流體。
泄 漏 量：零
