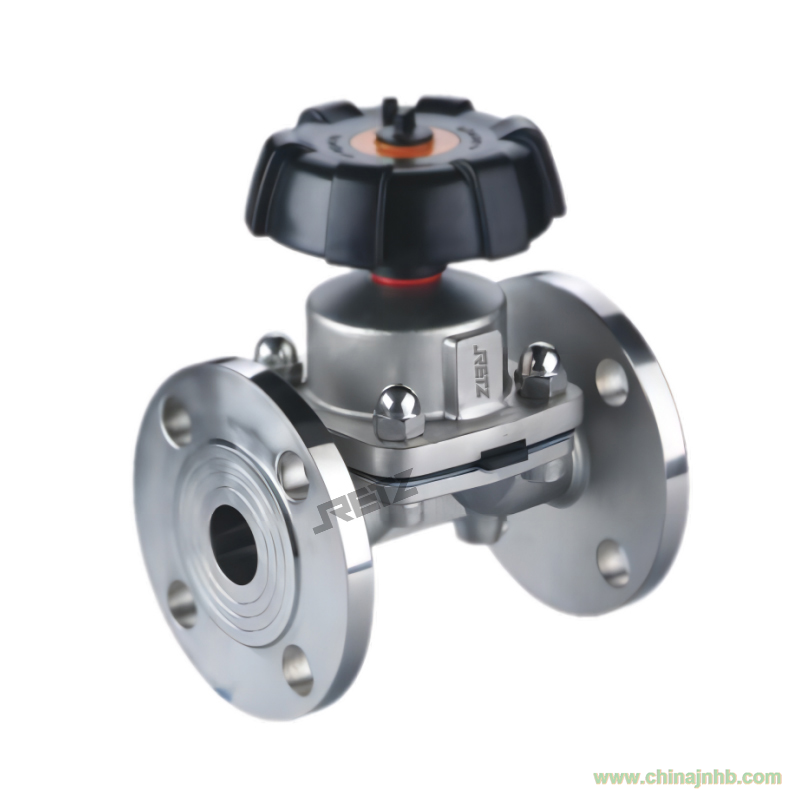

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口不銹鋼法蘭隔膜閥可滿足無菌和超衛生加工領域所有要求。廣泛應用于醫藥、生物制藥行業，以及半導體超純行業，微電子工業，精細化工行業 The
retz imported stainless steel flange diaphragm valve can meet all requirements
in the fields of aseptic and ultra hygienic processing. Widely used in the
pharmaceutical and biopharmaceutical industries, as well as the semiconductor
ultrapure industry, microelectronics industry, and fine chemical industry
標準化設計Standardization
design
閥體表面高潔凈平滑、無死角流道設計、自排凈安裝角度，易于拆卸、維護和清潔。無菌隔膜閥主要由閥體、隔膜閥、驅動器、自動化控制裝置組成。The
surface of the valve body is highly clean and smooth, with no dead angle flow
channel design and self draining installation angle, making it easy to
disassemble, maintain, and clean. Sterile diaphragm valve mainly consists of valve
body, diaphragm valve, driver, and automatic control device
進口不銹鋼法蘭隔膜閥隔膜設計Diaphragm
design
隔膜有軟性人造橡膠（EPDM）和硬性人造橡膠（TFM）可供選擇。硬性人造橡膠由軟性人造橡膠支撐。2片式設計允許兩片人造橡膠各自獨立地工作，這樣可減少因不同的熱屬性而引起的張緊
The
diaphragm has soft artificial rubber (EPDM) and hard artificial rubber (TFM)
for chosen. Rigid artificial rubber is supported by soft rubber. 2 chip design
allows two pieces of artificial rubber to work independently, so that it can
reduce the tension caused by different thermal properties
每種應用有不同的工作條件，因此對隔膜也有不同的要求。為選出最適合您的應用之隔膜，需考慮以下因素：工作壓力、應用溫度、工藝流體
Each
application has a different working condition, so the diaphragm also has
different requirements. In order to select the most suitable for your
application of the diaphragm, the following factors should be considered: working
pressure, application temperature, process fluid.
軟性人造橡膠（EPDM）適用于大多數應用，并適用于工作溫度較高的應用。軟性人造橡膠隔膜的典型特點是其對于機械污染介質的適用性。
Soft
synthetic rubber (EPDM) is suitable for most applications, and it is suitable
for the application of higher operating temperature. The typical characteristic
of soft artificial rubber diaphragm is its applicability to mechanical
pollution medium
●規格SIZE:1/2
"-4"，DN15-DN100
●標準 BPE： 3A DIN ISO IDF
●最高溫度Max temperature：-20到150℃(取決于密封材質)(不銹鋼執行器)
●最高壓力Max pressure：10bar（145 PSI）
●閥體材質material quality：SS304/316L
●膜片材料：EPDM+PTFE(雙層)/EPDM/Silicon/FPM(Viton)
●連接方式Connection method：法蘭 flange
●操作方式operating mode：手動和氣動 Manual and
pneumatic
RETZ的衛生級閥門可以滿足工控系統的截?cái)?、安全、控制、潔凈的控制產品涵蓋了：進口衛生級隔膜閥、蝶閥、球閥、安全閥、截止閥、疏水閥、泵、取樣閥、電磁閥、電動閥、氣動閥、調節閥
富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
