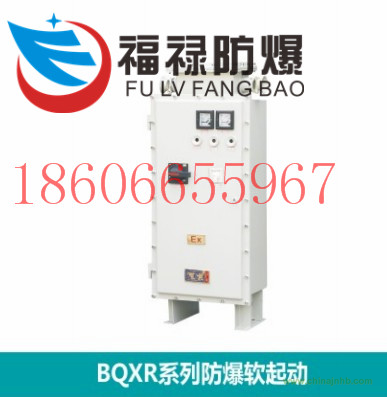

品名稱:BQXR51-T系列防爆軟起動器（ⅡB）
BQXR51-T系列防爆軟起動器適用范圍Application
1區、2區危場所。
IIA、IIB類爆竹性氣體環境.
Can be used in Zone 1 and Zone 2one 2dangerous places.
Can be used in IIA,IIB group explosive atmosphere.
型號含義Model implication
BQXR51-T系列防爆軟起動器產品特點 Features
外殼采用鑄鋁合金或鋼板焊接而成,表面噴塑.
內裝本公司或施耐德等公司生產的固態軟起動器,采用逐步升壓的方法,實現平滑動,5kw以上的防爆軟起動器設有半導體制冷裝置,并具有測溫裝置,用戶如有需要請與我公司工程技術人員聯系訂購.
可根據負載特性選用常規起動和重載起動,起動參數可自行設定.
符合GB3836-2000,IEC60079標準要求.
The shell is made of diecasted AI-alloy or welded of steel plates.
Inside will be installed Our company or Schneider’s solid soft starter,which increase
voltage step by step to flatly start.
It shall select the starting mode from normal bype and heavy-loaded bype according to
load characteristics,starting parameter can be self-set.
Suitable for GB3836-2000,IEC60079 standard request.
BQXR51-T系列防爆軟起動器主要技術參數 Main technical parameters
產品型號Type
電機功率Motor power
額定電流(A)Rated current 防爆標志Ex-mark 防護等級Protection grade 引入裝置規格(G") Inlet’s pecification 電纜外徑()Cable’s outerdiameter
BQXR51-5 5 10 Exd II BT4 IP54 1/4 15-23
BQXR51-15 15 10-30 1/2 18-26
BQXR51-22 22 29-60
BQXR51-30 30 28-75 2 26-34
BQXR51-45 45 60-90 2/2 30-43
BQXR51-55 55 70-110
BQXR51-75 75 87.5-145 3 40-52
BQXR51-90 7590 105-175
