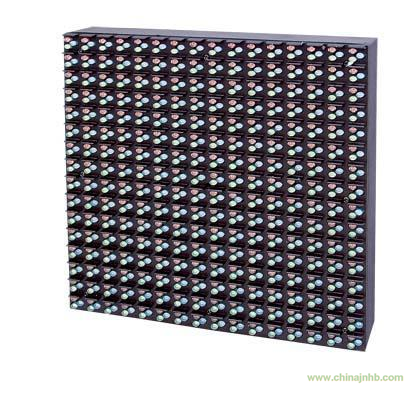

P10 戶外全彩節能顯示屏技術參數
|
|
產品型號
|
|
|
P10-1R1G1B
|
LED 燈種類
|
|
|
346（DIP）
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
（1）LED 管芯參數
|
|
|
|
|
|
|
|
結構說明：每像素點采用 1 紅 1 綠 1 藍共三顆直
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
插發光管，燈管封裝為：Φ3mm 橢圓
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
序
|
項目
|
|
|
波長典型值
|
亮度典型值
|
|
備注
|
|
|
|
1
|
紅色管芯
|
|
|
620~625nm
|
1300~1500
|
|
|
晶元或三安
|
|
|
|
2
|
綠色管芯
|
|
|
520~522.5nm
|
2200~2600
|
|
|
晶元或三安
|
|
|
|
3
|
藍色管芯
|
|
|
467.5~470nm
|
800~1300
|
|
|
晶元或三安
|
|
|
|
（2）像素點參數
|
|
|
|
|
|
|
|
為使配色達到最佳的白平衡效果，要求各種顏色
|
|
|
|
|
|
|
|
|
|
|
亮度的配色比例為 R：G：B/3：6：1。
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
序號
|
|
|
|
項目
|
|
參數
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1
|
|
|
|
LED 燈種類
|
DIP346
|
|
|
|
|
|
|
|
|
點間距
|
10
|
|
|
|
|
2
|
|
|
|
像素點組成
|
1R1G1B
|
|
|
|
|
（3）模組技術參數
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
序號
|
|
|
|
項目
|
|
參數
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1
|
|
模組尺寸(寬×高)
|
160mm×160mm
|
|
|
|
2
|
模組分辨率(寬×高)
|
16×16（實像素點）
|
|
|
|
3
|
|
|
|
模塊接口
|
HUB75
|
|
|
|
|
4
|
|
|
|
模組重量
|
|
0.5KG
|
|
|
|
|
5
|
|
|
|
模塊功耗
|
|
7.6W
|
|
|
|
|
（4）箱體技術參數
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1
|
箱體分辨率(寬×高)
|
96×96
|
|
|
|
|
2
|
|
模組分布(寬×高)
|
6×6
|
|
|
|
|
3
|
|
|
模組間平整度
|
≤0.5mm
|
|
|
|
|
4
|
|
箱體尺寸(寬×高)
|
960mm×960mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
（5）屏體技術參數
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1
|
|
點密度（點/ m2）
|
10000
|
|
|
|
|
2
|
白平衡亮度（cd/ m2）
|
≥8000mcd
|
|
|
|
3
|
平均功耗（≤W/ m2）
|
100W/㎡
|
|
|
|
|
4
|
最大功耗（≤W/ m2）
|
300W/㎡
|
|
|
|
|
5
|
|
|
|
驅動器
|
MY9862
|
|
|
|
|
6
|
|
|
|
亮度均勻性
|
>99%
|
|
|
|
|
7
|
水平視角/垂直視角
|
水平 120 度/垂直 60 度
|
|
|
|
8
|
|
|
|
屏體色溫
|
6500～9500K
|
|
|
|
9
|
|
有效視距
|
10～150
|
|
|
|
|
10
|
|
|
箱體間平整度
|
|
≤1mm
|
|
|
